Energy Storage Signal Connector Male Contact Au 20-22AWG
1 . Descriptions:
The CT connectors comply with SAE J2030 LV214 and QCT 1067.1-2017.CT connectors are widely used in traditional and new energy industries,and are typically used in new energy vehicles,traditional vehicles,engineering machinery,energy storage, and communication equipment.The products have features such as anti misinsertion design,easy operation,and multiple connection and fixation methods.We provide various sizes and multiple PIN specifications,various signal terminalsto choose from,and various cost-effective supporting solutions.
Applications: Machinery,Automotive,BMS, ESS
2 . Specifications:
Name | Energy Storage Signal Connector Female Contact Au 20-22AWG |
UL Approval | UL1977 |
Product Qualification | RoHS2.0 |
Apply Wire Gage | 0.50 -2.0 mm² (20~14AWG) |
Application Contact | Power and data |
Operation Current | 13A Max |
Rated Voltage | 250V AC/DC |
LLCR | ＜10mΩ |
Insulation Resistance | ＞1000MΩ |
Dielectrical | 1500V/AC |
Material | PA66 GF15,SuSn6 |
Mating Force | F≤135N |
Withdraw Force | F≤135N |
Durability | 200 cycles |
Operating Temperature Range | -55 – 125 °C [ -67 – 257 °F ] |
3 . Related Materials Download
:
CT Connectors Product Datasheet.pdf
4 . Advantage:

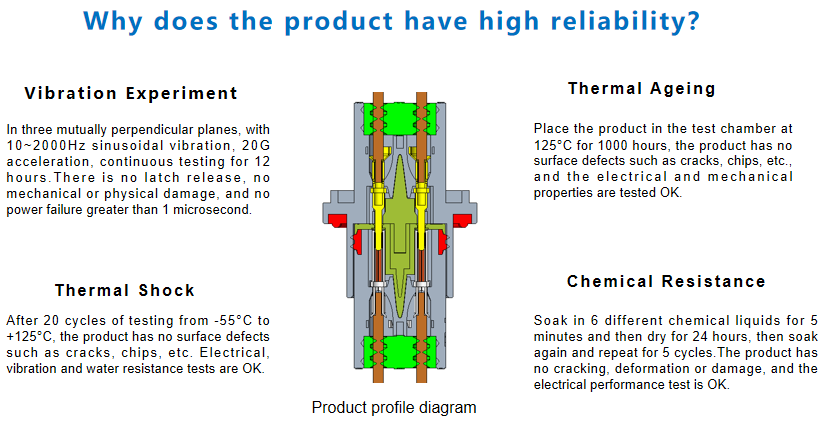

Unmatched Product Reliability Through Rigorous Testing
Our products undergo comprehensive testing to ensure exceptional reliability and performance
under the most demanding conditions:
.
5 . Product Assembly Diagram:
|
|
